Two-Shaft Shredders

Platinum Metals IND LLC supplies industrial-grade Two-Shaft Shredders built for high-torque, heavy-duty size reduction of the toughest materials in recycling, waste management, and industrial processing operations. Featuring two counter-rotating shafts fitted with interlocking hardened cutting blades, the twin-shaft shredder is the industry workhorse renowned for its ability to process dense, bulky, and mixed-material feed streams that single-shaft machines simply cannot handle.

How It Works

The two-shaft shredder operates on a slow-speed, high-torque principle. Two horizontally mounted shafts rotate in opposite directions, drawing material into the cutting chamber and subjecting it to powerful shearing, tearing, and crushing forces between the interlocking blade stacks. This low-speed operation typically between 15 to 80 RPM generates exceptional mechanical advantage without the excessive noise, heat, or dust associated with high-speed cutting machines.

Unlike four-shaft models, twin-shaft shredders generally operate without a fixed sizing screen, producing a coarser, more variable output particle making them ideal as a primary reduction stage or for applications where a defined fine particle size is not required. Optional sizing screens can be fitted on certain configurations for greater output control.

Key Features & Benefits

• High-Torque Counter-Rotating Shafts — two independently driven shafts deliver immense cutting force, enabling consistent processing of thick steel plates, solid rubber blocks, reinforced cable bundles, and other high-resistance materials that would stall lesser machines.

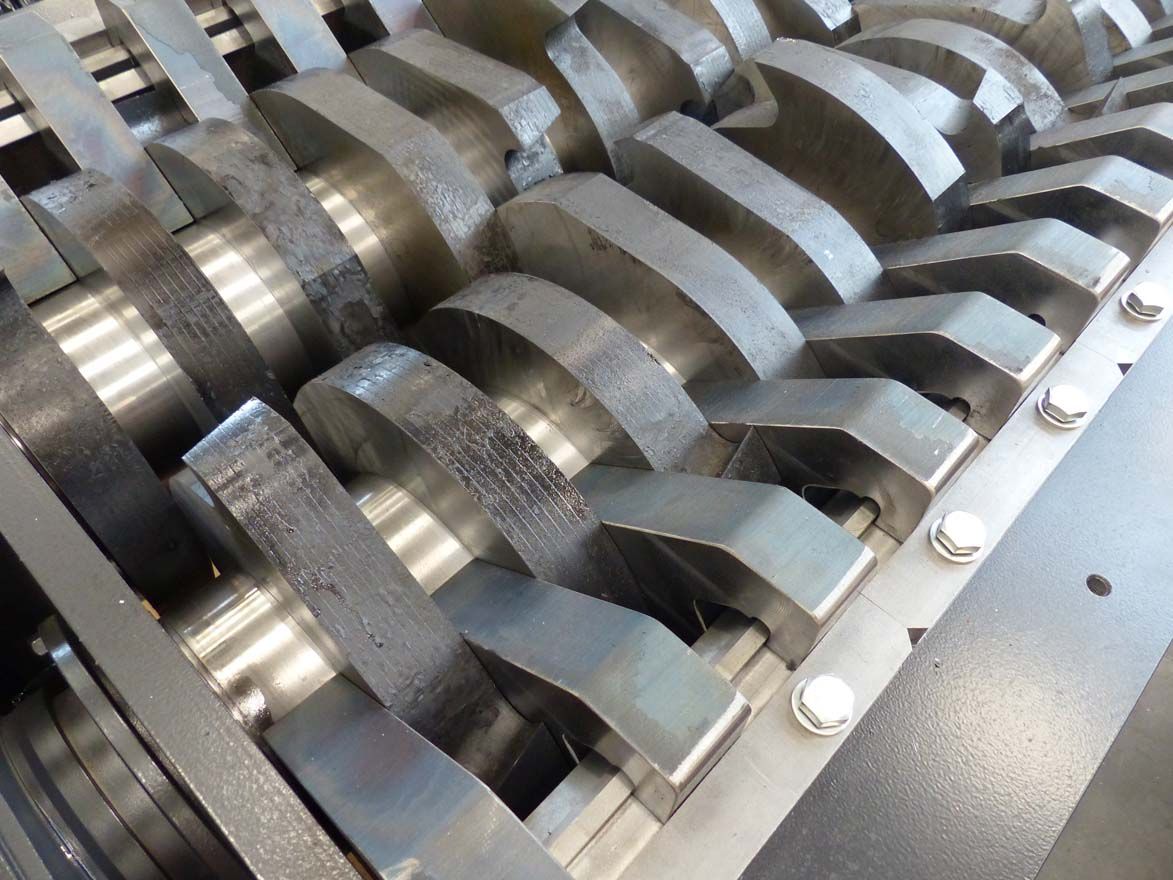

• Hardened Interlocking Cutting Blades — precision-machined from high-chromium or tool steel, the blade stacks interlock with minimal clearance to maximize shearing efficiency and minimize uncut material passing through the cutting zone.
• Reversible & Replaceable Blades — blades can be rotated to expose fresh cutting edges before replacement, significantly extending service life and reducing consumable costs per tonne of material processed.
• Automatic Reverse & Anti-Jam System — intelligent drive controls detect blockages and automatically reverse shaft rotation to clear jams without operator intervention, protecting the cutting system and minimizing downtime.
• Heavy-Duty Welded Steel Frame — the shredder body is constructed from thick-section structural steel with reinforced bearing housings, designed to absorb the constant shock and vibration loads of heavy industrial shredding without fatigue or distortion.
• Low Noise & Dust Emission — slow-speed operation keeps noise levels well within industrial health and safety limits, reducing the need for costly acoustic enclosures or dust extraction systems in many applications.
• Drive Options Available — hydraulic drive systems offer smooth torque delivery and built-in overload protection ideal for variable or unpredictable feed material; electric gear-motor drives provide energy efficiency and lower maintenance for consistent, controlled material streams.
• Versatile Feed Compatibility — processes an exceptionally wide range of materials, from soft plastics and textiles to heavy metal scrap and reinforced rubber, making it one of the most adaptable shredder configurations available.
• Customizable Chamber Width & Shaft Length — available in a range of cutting chamber sizes to match throughput targets from small batch operations to continuous high-volume industrial processing lines.

Materials Processed

Two-Shaft Shredders are proven across a broad spectrum of challenging feed materials including scrap metal and steel offcuts, car bodies and white goods, tyres and solid rubber products, plastic drums, pipes, and profiles, cable and wire harness bundles, wood pallets and timber offcuts, electronic waste and circuit boards, textile and fiber bales, industrial and municipal solid waste, and confidential document and media destruction.

Applications

• Metal scrap and recycling yards
• Tyre recycling and rubber crumb production
• Cable and wire recycling facilities
• Electronic waste (e-waste) processing plants
• Automotive shredding and depollution
• Plastic and packaging recycling operations
• Municipal solid waste (MSW) and refuse-derived fuel (RDF) pre-processing
• Wood waste and pallet recycling
• Industrial and hazardous waste volume reduction
• Confidential material and product destruction

Two-Shaft vs. Four-Shaft: Choosing the Right Configuration

The two-shaft shredder excels where raw throughput capacity, versatility across material types, and robust handling of large, irregular, or heavily contaminated feed streams are the priority. For operations requiring a precisely controlled, fine output particle size in a single machine pass, the Four-Shaft Shredder (also available from Platinum Metals) is the recommended solution. Many processing lines use both in sequence the twin shaft for primary bulk reduction and the four shaft for secondary sizing.

Available Specifications

Two-Shaft Shredders are available in a range of cutting chamber widths, shaft diameters, drive power ratings, and blade configurations to suit specific material types and throughput requirements. Both hydraulic and electro-mechanical drive systems are available. Custom configurations and integration into existing conveyor and processing lines can be accommodated upon request.

Partner with Platinum Metals

Platinum Metals IND LLC, headquartered in Sharjah, UAE, supplies industrial shredding equipment to recycling operators, waste processors, and industrial manufacturers across the Middle East, Asia, Africa, and Europe. Our technical team provides application-specific guidance to ensure you select the right shredder configuration for your material, throughput, and output size requirements backed by competitive pricing and reliable global logistics.

Contact us today to discuss your shredding requirements, request a technical proposal, or obtain a competitive quotation.
