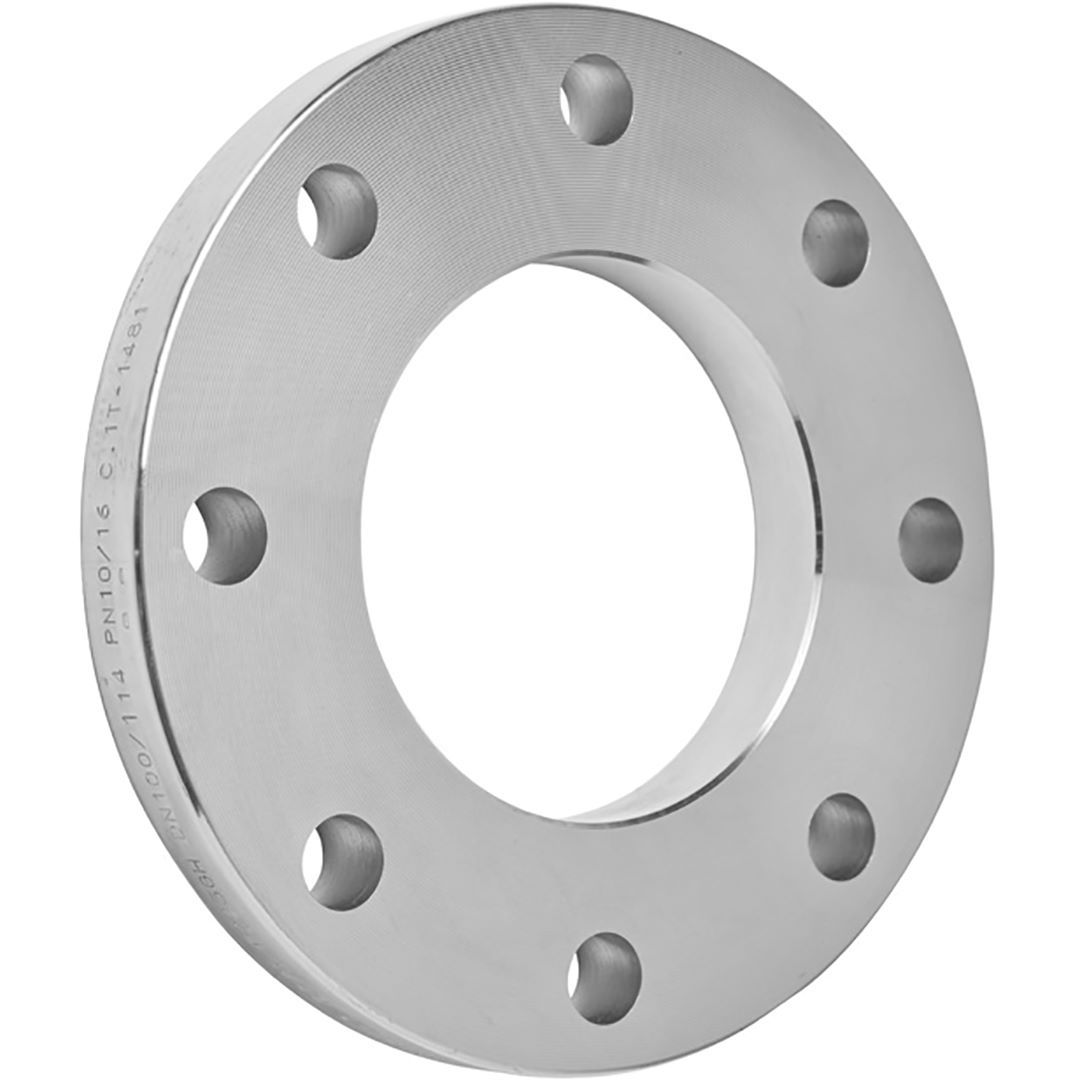

Steel Flanges

Platinum Metals IND LLC supplies a comprehensive range of Steel Flanges precision-engineered to provide secure, leak-proof connections between pipes, valves, pumps, pressure vessels, and other critical process equipment. Built to exacting dimensional tolerances and manufactured from high-quality steel across multiple grades, our flanges deliver the strength, pressure integrity, and corrosion resistance required in the most demanding industrial piping systems worldwide.

From routine maintenance replacements to large-scale project procurement, Platinum Metals is the trusted sourcing partner for steel flanges across the Middle East, Asia, Africa, Europe, and beyond.

Why Steel Flanges Matter

Flanges are among the most critical components in any piping system they are the connection points where integrity, pressure containment, and leak prevention must never be compromised. A poorly specified or substandard flange can result in costly shutdowns, safety incidents, or environmental failures. Platinum Metals sources only certified, mill-tested flanges that conform to international manufacturing standards, giving engineers and procurement teams full confidence in every joint.

Flange Types Available

We supply the complete range of flange types to suit all piping configurations, pressure classes, and installation requirements:

• Weld Neck Flanges (WN) — the most widely used flange type in high-pressure and high-temperature applications; the long tapered hub provides a smooth bore transition and superior stress distribution, making it ideal for critical service piping in oil & gas and power generation.
• Slip-On Flanges (SO) — slipped over the pipe and fillet-welded on both sides; cost-effective and easy to align during installation, suitable for low to moderate pressure applications.
• Blind Flanges (BL) — solid discs used to seal the end of a pipe, nozzle, or valve; designed to withstand full system pressure and commonly used for pressure testing and future pipeline extensions.
• Socket Weld Flanges (SW) — for smaller diameter, high-pressure piping; the pipe is inserted into the socket recess and fillet-welded externally for a strong, compact connection.
• Threaded Flanges (TH) — connect to pipe by threaded engagement, eliminating the need for welding; suitable for low-pressure, non-critical systems or environments where welding is not permitted.
• Lap Joint Flanges (LJ) — used with stub end fittings, allowing easy rotation for bolt-hole alignment; particularly useful in systems requiring frequent dismantling for inspection or cleaning.
• Orifice Flanges — specially designed for flow measurement applications, featuring tapped holes for differential pressure instruments; used in metering systems across oil, gas, and water industries.
• Long Weld Neck Flanges (LWN) — an extended version of the weld neck, commonly used on pressure vessels, columns, and nozzles as an integral nozzle connection.
• Spectacle Blind Flanges — used for positive isolation of piping sections during maintenance; alternate between open (flow) and closed (blind) positions without breaking the piping joint.

Face Types Available

• Raised Face (RF)
• Flat Face (FF)
• Ring Type Joint (RTJ)
• Tongue and Groove (T&G)
• Male and Female (M&F)

Materials of Construction

Our steel flanges are available across a wide spectrum of material grades to match service conditions:

• Carbon Steel — ASTM A105, A350 LF2 (low-temperature), A694 (high-yield, pipeline service)
• Stainless Steel — ASTM A182 Grade F304, F304L, F316, F316L, F321, F347
• Alloy Steel — ASTM A182 Grade F5, F9, F11, F22, F91 (for high-temperature, high-pressure service)
• Duplex & Super Duplex — F51 (2205), F53/F55 (2507) for chloride-resistant and offshore applications
• Nickel Alloys — Inconel, Hastelloy, Monel, and Incoloy grades for extreme corrosion and temperature service

Pressure Classes & Standards

Flanges are available in ANSI/ASME pressure classes from Class 150 through Class 2500, as well as DIN PN6 through PN400 and equivalent international pressure ratings. All flanges are manufactured and certified to recognized international standards including ASME B16.5, ASME B16.47 (large diameter), MSS SP-44, DIN EN 1092, and BS 4504.

Key Features & Benefits

• Precision Dimensional Accuracy — tight machining tolerances ensure consistent bolt-hole alignment and face flatness, enabling reliable, repeatable gasket seating and leak-free assembly.
• Full Material Traceability — all flanges are supplied with mill test reports (MTR) and certificates of conformance, meeting the documentation requirements of critical process and pressure piping projects.
• High Pressure & Temperature Performance — engineered to maintain structural integrity and seal performance under sustained mechanical loads, thermal cycling, and pressure surges.
• Wide Material Compatibility — from standard carbon steel for general service to exotic alloy grades for aggressive chemical, high-temperature, or cryogenic environments.
• Third-Party Inspection Ready — our supply chain supports third-party inspection and testing by leading TPI agencies including TÜVNORD, SGS, Bureau Veritas, and Lloyd's Register upon request.
• Versatile Size Range — available in nominal pipe sizes from ½" (DN15) up to 60" (DN1500) and beyond for large-bore applications.

Applications

• Oil & gas upstream, midstream, and downstream facilities
• Petrochemical and chemical processing plants
• Power generation — thermal, nuclear, and renewable
• Marine and offshore platforms
• Water treatment and desalination plants
• Pharmaceutical and food processing systems
• Pulp and paper manufacturing
• Mining and mineral processing
• Construction and infrastructure projects

Partner with Platinum Metals

Platinum Metals IND LLC combines an extensive product inventory with deep technical expertise to help clients across industries source the right flange for every application on time and at competitive prices. Our team assists with material selection, standard compliance verification, and custom specification fulfillment, ensuring your procurement process is as smooth as the piping systems we help you build.

Contact us today to request a detailed quote, check stock availability, or discuss your project flange requirements.
